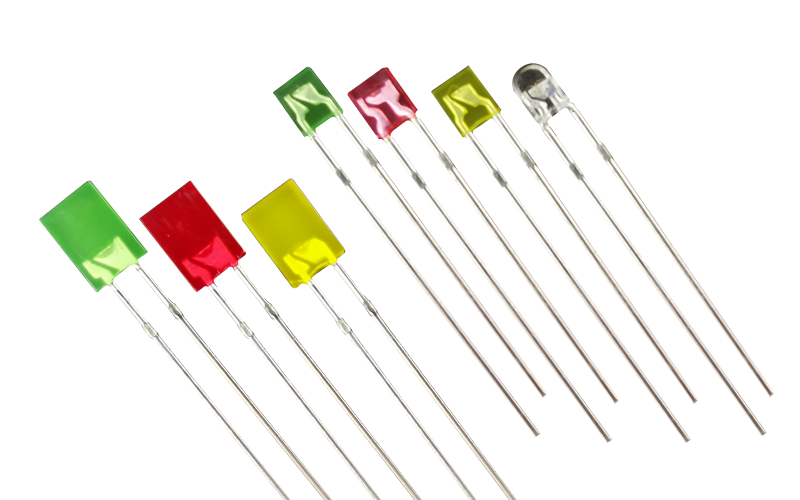

SQUARE TYPE LED LAMP

SQUARE TYPE LED LAMP-1×3mm SERIES

Part NO.MaterialLens ColorIv(mcd) Viewing Angleλp
Min.Typ.
LL-134SD2A-001A1GaAsDiffused410160660
LL-132ST1M-001A1GaAsTransparent48160656
LL-134GD2A-001GaPDiffused24.2160568
LL-134GT2A-005GaPTransparent24.5155568
LL-134YD2A-003GaAsPDiffused1.53.4160588
LL-134YT2A-001GaAsPTransparent1.53.6155588
LL-134BM2A-001InGaNWhite Diffused1020170468
LL-132ZC2A-001InGaNWater Clear110240120525

SQUARE TYPE LED LAMP-2×3mm SERIES

Part NO.MaterialLens ColorIv(mcd) Viewing Angleλp
Min.Typ.
LL-234VD2F-001A1GaInPDiffused6012095645
LL-234VC2F-001A1GaInPWater Clear9019080645
LL-234SC1L-001GaP81586660
LL-234GD2L-008GaPDiffused1530130568
LL-234YD2L-004GaAsP715130588
LL-234BC2F-001InGaNWater Clear12035080168
LL-23ABC2F-001InGaN9624080468
LL-23AZC2F-001InGaN600120060525

SQUARE TYPE LED LAMP-2×5mm SERIES

Part NO.MaterialLens ColorIv(mcd) Viewing Angleλp
Min.Typ.
LL-253HD2H-004GaPDiffused0.31145700
LL-253HD2F-004GaP0.51140700
LL-253SC2F-001A1GaAsWater Clear153045660
LL-253GD2F-006GaPDiffused58135568
LL-253GC2F-002GaPWater Clear1228120568
LL-253YD2G-001GaAsPDiffused715135588
LL-253YC2F-003AlGaInPWater Clear70150120590
LL-253BD1G-002InGaNDiffused55120146470
LL-253BM2F-002InGaNWhite Diffused2365150468
LL-253BT2J-001InGaNTransparent1230110468
LL-253BC2F-003InGaNWater Clear63140120468
LL-253BC2J-002InGaN100250100460
LL-253ZM2F-002InGaN80180150525
LL-253ZC1G-001InGaN16034080525
