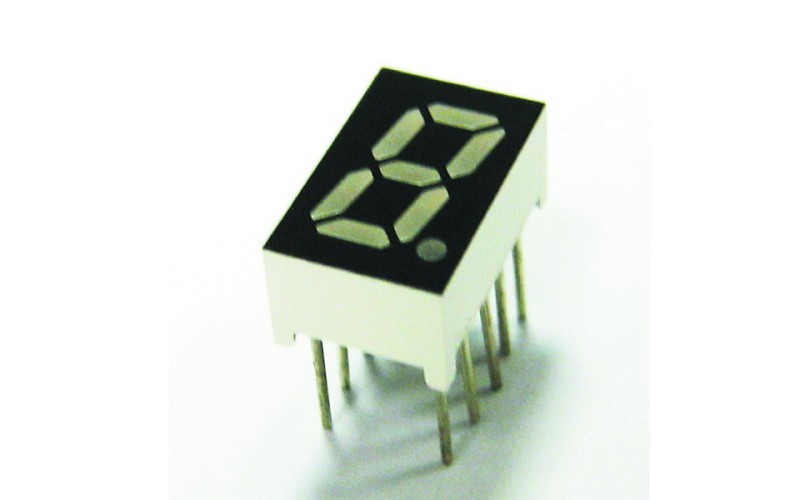

SINGLE DIGIT DISPLAY

SINGLE DIGIT DISPLAY (0.28"~0.32")

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-281A2 KW1-281C2 Green 570 7 15 2.2 2.6

KW1-281A3 KW1-281C3 Orange 630 8 15 2 2.5

KW1-281A5 KW1-281C5 Red 700 5 10 2.1 2.5

KW1-281A6 KW1-281C6 Yellow 585 5 10 2.1 2.5

KW1-281AG KW1-281CG Green 570 7 15 2.2 2.6

KW1-281AS KW1-281CS Red 660 7 15 1.85 2.4

KW1-281AY KW1-281CY Yellow 585 30 60 2.1 2.5

KW1-281AB KW1-281CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-281A2	KW1-281C2	Green	570	7	15	2.2	2.6
KW1-281A3	KW1-281C3	Orange	630	8	15	2	2.5
KW1-281A5	KW1-281C5	Red	700	5	10	2.1	2.5
KW1-281A6	KW1-281C6	Yellow	585	5	10	2.1	2.5
KW1-281AG	KW1-281CG	Green	570	7	15	2.2	2.6
KW1-281AS	KW1-281CS	Red	660	7	15	1.85	2.4
KW1-281AY	KW1-281CY	Yellow	585	30	60	2.1	2.5
KW1-281AB	KW1-281CB	Blue	470	30	50	4.5	5

0.30″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-301A2 KW1-301C2 Green 570 7 15 2.2 2.6

KW1-301A3 KW1-301C3 Orange 630 8 15 2 2.5

KW1-301A5 KW1-301C5 Red 700 5 10 2.1 2.5

KW1-301A6 KW1-301C6 Yellow 585 5 10 2.1 2.6

KW1-301AG KW1-301CG Green 570 7 15 2.2 2.6

KW1-301AS KW1-301CS Red 660 7 15 1.85 2.4

KW1-301AY KW1-301CY Yellow 585 30 60 2.1 2.5

KW1-301AB KW1-301CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-301A2	KW1-301C2	Green	570	7	15	2.2	2.6
KW1-301A3	KW1-301C3	Orange	630	8	15	2	2.5
KW1-301A5	KW1-301C5	Red	700	5	10	2.1	2.5
KW1-301A6	KW1-301C6	Yellow	585	5	10	2.1	2.6
KW1-301AG	KW1-301CG	Green	570	7	15	2.2	2.6
KW1-301AS	KW1-301CS	Red	660	7	15	1.85	2.4
KW1-301AY	KW1-301CY	Yellow	585	30	60	2.1	2.5
KW1-301AB	KW1-301CB	Blue	470	30	50	4.5	5

0.31″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-311A2 KW1-311C2 Green 570 7 15 2.2 2.6

KW1-311A3 KW1-311C3 Orange 630 8 15 2 2.5

KW1-311A5 KW1-311C5 Red 700 5 10 2.1 2.5

KW1-311A6 KW1-311C6 Yellow 585 5 10 2.1 2.6

KW1-311AG KW1-311CG Green 570 7 15 2.2 2.6

KW1-311AS KW1-311CS Red 660 7 15 1.85 2.4

KW1-311AY KW1-311CY Yellow 585 30 60 2.1 2.5

KW1-311AB KW1-311CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-311A2	KW1-311C2	Green	570	7	15	2.2	2.6
KW1-311A3	KW1-311C3	Orange	630	8	15	2	2.5
KW1-311A5	KW1-311C5	Red	700	5	10	2.1	2.5
KW1-311A6	KW1-311C6	Yellow	585	5	10	2.1	2.6
KW1-311AG	KW1-311CG	Green	570	7	15	2.2	2.6
KW1-311AS	KW1-311CS	Red	660	7	15	1.85	2.4
KW1-311AY	KW1-311CY	Yellow	585	30	60	2.1	2.5
KW1-311AB	KW1-311CB	Blue	470	30	50	4.5	5

0.32″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-321A2 KW1-321C2 Green 570 7 15 2.2 2.6

KW1-321A3 KW1-321C3 Orange 630 8 15 2 2.5

KW1-321A5 KW1-321C5 Red 700 5 10 2.1 2.5

KW1-321A6 KW1-321C6 Yellow 585 5 10 2.1 2.5

KW1-321AG KW1-321CG Green 570 7 15 2.2 2.6

KW1-321AS KW1-321CS Red 660 7 15 1.85 2.4

KW1-321AY KW1-321CY Yellow 585 30 60 2.1 2.5

KW1-321AB KW1-321CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-321A2	KW1-321C2	Green	570	7	15	2.2	2.6
KW1-321A3	KW1-321C3	Orange	630	8	15	2	2.5
KW1-321A5	KW1-321C5	Red	700	5	10	2.1	2.5
KW1-321A6	KW1-321C6	Yellow	585	5	10	2.1	2.5
KW1-321AG	KW1-321CG	Green	570	7	15	2.2	2.6
KW1-321AS	KW1-321CS	Red	660	7	15	1.85	2.4
KW1-321AY	KW1-321CY	Yellow	585	30	60	2.1	2.5
KW1-321AB	KW1-321CB	Blue	470	30	50	4.5	5

SINGLE DIGIT DISPLAY (0.36"~0.43")

0.36″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-361A2 KW1-361C2 Green 570 7 15 2.2 2.6

KW1-361A3 KW1-361C3 Orange 630 8 15 2 2.5

KW1-361A5 KW1-361C5 Red 700 5 10 2.1 2.5

KW1-361A6 KW1-361C6 Yellow 585 5 10 2.1 2.5

KW1-361AG KW1-361CG Green 570 7 15 2.2 2.6

KW1-361AS KW1-361CS Red 660 7 15 1.85 2.4

KW1-361AY KW1-361CY Yellow 585 30 60 2.1 2.5

KW1-361AB KW1-361CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-361A2	KW1-361C2	Green	570	7	15	2.2	2.6
KW1-361A3	KW1-361C3	Orange	630	8	15	2	2.5
KW1-361A5	KW1-361C5	Red	700	5	10	2.1	2.5
KW1-361A6	KW1-361C6	Yellow	585	5	10	2.1	2.5
KW1-361AG	KW1-361CG	Green	570	7	15	2.2	2.6
KW1-361AS	KW1-361CS	Red	660	7	15	1.85	2.4
KW1-361AY	KW1-361CY	Yellow	585	30	60	2.1	2.5
KW1-361AB	KW1-361CB	Blue	470	30	50	4.5	5

0.39″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-391A2 KW1-391C2 Green 570 7 15 2.2 2.6

KW1-391A3 KW1-391C3 Orange 630 8 15 2 2.5

KW1-391A5 KW1-391C5 Red 700 5 10 2.1 2.5

KW1-391A6 KW1-391C6 Yellow 585 5 10 2.1 2.6

KW1-391AG KW1-391CG Green 570 7 15 2.2 2.6

KW1-391AS KW1-391CS Red 660 7 15 1.85 2.4

KW1-391AY KW1-391CY Yellow 585 30 60 2.1 2.5

KW1-391AB KW1-391CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-391A2	KW1-391C2	Green	570	7	15	2.2	2.6
KW1-391A3	KW1-391C3	Orange	630	8	15	2	2.5
KW1-391A5	KW1-391C5	Red	700	5	10	2.1	2.5
KW1-391A6	KW1-391C6	Yellow	585	5	10	2.1	2.6
KW1-391AG	KW1-391CG	Green	570	7	15	2.2	2.6
KW1-391AS	KW1-391CS	Red	660	7	15	1.85	2.4
KW1-391AY	KW1-391CY	Yellow	585	30	60	2.1	2.5
KW1-391AB	KW1-391CB	Blue	470	30	50	4.5	5

0.40″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-401A2 KW1-401C2 Green 570 7 15 2.2 2.6

KW1-401A3 KW1-401C3 Orange 630 8 15 2 2.5

KW1-401A5 KW1-401C5 Red 700 5 10 2.1 2.5

KW1-401A6 KW1-401C6 Yellow 585 5 10 2.1 2.5

KW1-401AG KW1-401CG Green 570 7 15 2.2 2.6

KW1-401AS KW1-401CS Red 660 7 15 1.85 2.4

KW1-401AY KW1-401CY Yellow 585 30 60 2.1 2.5

KW1-401AB KW1-401CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-401A2	KW1-401C2	Green	570	7	15	2.2	2.6
KW1-401A3	KW1-401C3	Orange	630	8	15	2	2.5
KW1-401A5	KW1-401C5	Red	700	5	10	2.1	2.5
KW1-401A6	KW1-401C6	Yellow	585	5	10	2.1	2.5
KW1-401AG	KW1-401CG	Green	570	7	15	2.2	2.6
KW1-401AS	KW1-401CS	Red	660	7	15	1.85	2.4
KW1-401AY	KW1-401CY	Yellow	585	30	60	2.1	2.5
KW1-401AB	KW1-401CB	Blue	470	30	50	4.5	5

0.43″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-431A2 KW1-431C2 Green 570 7 15 2.2 2.6

KW1-431A3 KW1-431C3 Orange 630 8 15 2 2.5

KW1-431A5 KW1-431C5 Red 700 5 10 2.1 2.5

KW1-431A6 KW1-431C6 Yellow 585 5 10 2.1 2.5

KW1-431AG KW1-431CG Green 570 7 15 2.2 2.6

KW1-431AS KW1-431CS Red 660 7 15 1.85 2.4

KW1-431AY KW1-431CY Yellow 585 30 60 2.1 2.5

KW1-431AB KW1-431CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-431A2	KW1-431C2	Green	570	7	15	2.2	2.6
KW1-431A3	KW1-431C3	Orange	630	8	15	2	2.5
KW1-431A5	KW1-431C5	Red	700	5	10	2.1	2.5
KW1-431A6	KW1-431C6	Yellow	585	5	10	2.1	2.5
KW1-431AG	KW1-431CG	Green	570	7	15	2.2	2.6
KW1-431AS	KW1-431CS	Red	660	7	15	1.85	2.4
KW1-431AY	KW1-431CY	Yellow	585	30	60	2.1	2.5
KW1-431AB	KW1-431CB	Blue	470	30	50	4.5	5

SINGLE DIGIT DISPLAY (0.50"~0.56")

0.50″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-501A2 KW1-501C2 Green 570 7 15 2.2 2.6

KW1-501A3 KW1-501C3 Orange 630 8 15 2 2.5

KW1-501A5 KW1-501C5 Red 700 5 10 2.1 2.5

KW1-501A6 KW1-501C6 Yellow 585 5 10 2.1 2.6

KW1-501AG KW1-501CG Green 570 7 15 2.2 2.6

KW1-501AS KW1-501CS Red 660 7 15 1.85 2.4

KW1-501AY KW1-501CY Yellow 585 30 60 2.1 2.5

KW1-501AB KW1-501CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-501A2	KW1-501C2	Green	570	7	15	2.2	2.6
KW1-501A3	KW1-501C3	Orange	630	8	15	2	2.5
KW1-501A5	KW1-501C5	Red	700	5	10	2.1	2.5
KW1-501A6	KW1-501C6	Yellow	585	5	10	2.1	2.6
KW1-501AG	KW1-501CG	Green	570	7	15	2.2	2.6
KW1-501AS	KW1-501CS	Red	660	7	15	1.85	2.4
KW1-501AY	KW1-501CY	Yellow	585	30	60	2.1	2.5
KW1-501AB	KW1-501CB	Blue	470	30	50	4.5	5

0.52″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-521A2 KW1-521C2 Green 570 7 15 2.2 2.6

KW1-521A3 KW1-521C3 Orange 630 8 15 2 2.5

KW1-521A5 KW1-521C5 Red 700 5 10 2.1 2.5

KW1-521A6 KW1-521C6 Yellow 585 5 10 2.1 2.5

KW1-521AG KW1-521CG Green 570 7 15 2.2 2.6

KW1-521AS KW1-521CS Red 660 7 15 1.85 2.4

KW1-521AY KW1-521CY Yellow 585 30 60 2.1 2.5

KW1-521AB KW1-521CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-521A2	KW1-521C2	Green	570	7	15	2.2	2.6
KW1-521A3	KW1-521C3	Orange	630	8	15	2	2.5
KW1-521A5	KW1-521C5	Red	700	5	10	2.1	2.5
KW1-521A6	KW1-521C6	Yellow	585	5	10	2.1	2.5
KW1-521AG	KW1-521CG	Green	570	7	15	2.2	2.6
KW1-521AS	KW1-521CS	Red	660	7	15	1.85	2.4
KW1-521AY	KW1-521CY	Yellow	585	30	60	2.1	2.5
KW1-521AB	KW1-521CB	Blue	470	30	50	4.5	5

0.56″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-561A2 KW1-561C2 Green 570 7 15 2.2 2.6

KW1-561A3 KW1-561C3 Orange 630 8 15 2 2.5

KW1-561A5 KW1-561C5 Red 700 5 10 2.1 2.5

KW1-561A6 KW1-561C6 Yellow 585 5 10 2.1 2.5

KW1-561AG KW1-561CG Green 570 7 15 2.2 2.6

KW1-561AS KW1-561CS Red 660 7 15 1.85 2.4

KW1-561AY KW1-561CY Yellow 585 30 60 2.1 2.5

KW1-561AB KW1-561CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-561A2	KW1-561C2	Green	570	7	15	2.2	2.6
KW1-561A3	KW1-561C3	Orange	630	8	15	2	2.5
KW1-561A5	KW1-561C5	Red	700	5	10	2.1	2.5
KW1-561A6	KW1-561C6	Yellow	585	5	10	2.1	2.5
KW1-561AG	KW1-561CG	Green	570	7	15	2.2	2.6
KW1-561AS	KW1-561CS	Red	660	7	15	1.85	2.4
KW1-561AY	KW1-561CY	Yellow	585	30	60	2.1	2.5
KW1-561AB	KW1-561CB	Blue	470	30	50	4.5	5

0.56″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-562A2 KW1-562C2 Green 570 7 15 2.2 2.6

KW1-562A3 KW1-562C3 Orange 630 8 15 2 2.5

KW1-562A5 KW1-562C5 Red 700 5 10 2.1 2.5

KW1-562A6 KW1-562C6 Yellow 585 5 10 2.1 2.6

KW1-562AG KW1-562CG Green 570 7 15 2.2 2.6

KW1-562AS KW1-562CS Red 660 7 15 1.85 2.4

KW1-562AY KW1-562CY Yellow 585 30 60 2.1 2.5

KW1-562AB KW1-562CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-562A2	KW1-562C2	Green	570	7	15	2.2	2.6
KW1-562A3	KW1-562C3	Orange	630	8	15	2	2.5
KW1-562A5	KW1-562C5	Red	700	5	10	2.1	2.5
KW1-562A6	KW1-562C6	Yellow	585	5	10	2.1	2.6
KW1-562AG	KW1-562CG	Green	570	7	15	2.2	2.6
KW1-562AS	KW1-562CS	Red	660	7	15	1.85	2.4
KW1-562AY	KW1-562CY	Yellow	585	30	60	2.1	2.5
KW1-562AB	KW1-562CB	Blue	470	30	50	4.5	5

SINGLE DIGIT DISPLAY (0.60"~1.00")

0.60″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-601A2 KW1-601C2 Green 570 7 15 2.2 2.6

KW1-601A3 KW1-601C3 Orange 630 8 15 2 2.5

KW1-601A5 KW1-601C5 Red 700 5 10 2.1 2.5

KW1-601A6 KW1-601C6 Yellow 585 5 10 2.1 2.5

KW1-601AG KW1-601CG Green 570 7 15 2.2 2.6

KW1-601AS KW1-601CS Red 660 7 15 1.85 2.4

KW1-601AY KW1-601CY Yellow 585 30 60 2.1 2.5

KW1-601AB KW1-601CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-601A2	KW1-601C2	Green	570	7	15	2.2	2.6
KW1-601A3	KW1-601C3	Orange	630	8	15	2	2.5
KW1-601A5	KW1-601C5	Red	700	5	10	2.1	2.5
KW1-601A6	KW1-601C6	Yellow	585	5	10	2.1	2.5
KW1-601AG	KW1-601CG	Green	570	7	15	2.2	2.6
KW1-601AS	KW1-601CS	Red	660	7	15	1.85	2.4
KW1-601AY	KW1-601CY	Yellow	585	30	60	2.1	2.5
KW1-601AB	KW1-601CB	Blue	470	30	50	4.5	5

0.80″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-801A2 KW1-801C2 Green 570 7 15 2.2 2.6

KW1-801A3 KW1-801C3 Orange 630 8 15 2 2.5

KW1-801A5 KW1-801C5 Red 700 5 10 2.1 2.5

KW1-801A6 KW1-801C6 Yellow 585 5 10 2.1 2.5

KW1-801AG KW1-801CG Green 570 7 15 2.2 2.6

KW1-801AS KW1-801CS Red 660 7 15 1.85 2.4

KW1-801AY KW1-801CY Yellow 585 30 60 2.1 2.5

KW1-801AB KW1-801CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-801A2	KW1-801C2	Green	570	7	15	2.2	2.6
KW1-801A3	KW1-801C3	Orange	630	8	15	2	2.5
KW1-801A5	KW1-801C5	Red	700	5	10	2.1	2.5
KW1-801A6	KW1-801C6	Yellow	585	5	10	2.1	2.5
KW1-801AG	KW1-801CG	Green	570	7	15	2.2	2.6
KW1-801AS	KW1-801CS	Red	660	7	15	1.85	2.4
KW1-801AY	KW1-801CY	Yellow	585	30	60	2.1	2.5
KW1-801AB	KW1-801CB	Blue	470	30	50	4.5	5

0.80″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-802A2 KW1-802C2 Green 570 7 15 2.2 2.6

KW1-802A3 KW1-802C3 Orange 630 8 15 2 2.5

KW1-802A5 KW1-802C5 Red 700 5 10 2.1 2.5

KW1-802A6 KW1-802C6 Yellow 585 5 10 2.1 2.6

KW1-802AG KW1-802CG Green 570 7 15 2.2 2.6

KW1-802AS KW1-802CS Red 660 7 15 1.85 2.4

KW1-802AY KW1-802CY Yellow 585 30 60 2.1 2.5

KW1-802AB KW1-802CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-802A2	KW1-802C2	Green	570	7	15	2.2	2.6
KW1-802A3	KW1-802C3	Orange	630	8	15	2	2.5
KW1-802A5	KW1-802C5	Red	700	5	10	2.1	2.5
KW1-802A6	KW1-802C6	Yellow	585	5	10	2.1	2.6
KW1-802AG	KW1-802CG	Green	570	7	15	2.2	2.6
KW1-802AS	KW1-802CS	Red	660	7	15	1.85	2.4
KW1-802AY	KW1-802CY	Yellow	585	30	60	2.1	2.5
KW1-802AB	KW1-802CB	Blue	470	30	50	4.5	5

1.00″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-1001A2 KW1-1001C2 Green 570 7 15 2.2 2.6

KW1-1001A3 KW1-1001C3 Orange 630 8 15 2 2.5

KW1-1001A5 KW1-1001C5 Red 700 5 10 2.1 2.5

KW1-1001A6 KW1-1001C6 Yellow 585 5 10 2.1 2.5

KW1-1001AG KW1-1001CG Green 570 7 15 2.2 2.6

KW1-1001AS KW1-1001CS Red 660 7 15 1.85 2.4

KW1-1001AY KW1-1001CY Yellow 585 30 60 2.1 2.5

KW1-1001AB KW1-1001CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-1001A2	KW1-1001C2	Green	570	7	15	2.2	2.6
KW1-1001A3	KW1-1001C3	Orange	630	8	15	2	2.5
KW1-1001A5	KW1-1001C5	Red	700	5	10	2.1	2.5
KW1-1001A6	KW1-1001C6	Yellow	585	5	10	2.1	2.5
KW1-1001AG	KW1-1001CG	Green	570	7	15	2.2	2.6
KW1-1001AS	KW1-1001CS	Red	660	7	15	1.85	2.4
KW1-1001AY	KW1-1001CY	Yellow	585	30	60	2.1	2.5
KW1-1001AB	KW1-1001CB	Blue	470	30	50	4.5	5

SINGLE DIGIT DISPLAY (1.00"~1.50")

1.00″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-1002A2 KW1-1002C2 Green 570 7 15 2.2 2.6

KW1-1002A3 KW1-1002C3 Orange 630 8 15 2 2.5

KW1-1002A5 KW1-1002C5 Red 700 5 10 2.1 2.5

KW1-1002A6 KW1-1002C6 Yellow 585 5 10 2.1 2.5

KW1-1002AG KW1-1002CG Green 570 7 15 2.2 2.6

KW1-1002AS KW1-1002CS Red 660 7 15 1.85 2.4

KW1-1002AY KW1-1002CY Yellow 585 30 60 2.1 2.5

KW1-1002AB KW1-1002CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-1002A2	KW1-1002C2	Green	570	7	15	2.2	2.6
KW1-1002A3	KW1-1002C3	Orange	630	8	15	2	2.5
KW1-1002A5	KW1-1002C5	Red	700	5	10	2.1	2.5
KW1-1002A6	KW1-1002C6	Yellow	585	5	10	2.1	2.5
KW1-1002AG	KW1-1002CG	Green	570	7	15	2.2	2.6
KW1-1002AS	KW1-1002CS	Red	660	7	15	1.85	2.4
KW1-1002AY	KW1-1002CY	Yellow	585	30	60	2.1	2.5
KW1-1002AB	KW1-1002CB	Blue	470	30	50	4.5	5

1.20″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-1202A2 KW1-1202C2 Green 570 7 15 2.2 2.6

KW1-1202A3 KW1-1202C3 Orange 630 8 15 2 2.5

KW1-1202A5 KW1-1202C5 Red 700 5 10 2.1 2.5

KW1-1202A6 KW1-1202C6 Yellow 585 5 10 2.1 2.6

KW1-1202AG KW1-1202CG Green 570 7 15 2.2 2.6

KW1-1202AS KW1-1202CS Red 660 7 15 1.85 2.4

KW1-1202AY KW1-1202CY Yellow 585 30 60 2.1 2.5

KW1-1202AB KW1-1202CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-1202A2	KW1-1202C2	Green	570	7	15	2.2	2.6
KW1-1202A3	KW1-1202C3	Orange	630	8	15	2	2.5
KW1-1202A5	KW1-1202C5	Red	700	5	10	2.1	2.5
KW1-1202A6	KW1-1202C6	Yellow	585	5	10	2.1	2.6
KW1-1202AG	KW1-1202CG	Green	570	7	15	2.2	2.6
KW1-1202AS	KW1-1202CS	Red	660	7	15	1.85	2.4
KW1-1202AY	KW1-1202CY	Yellow	585	30	60	2.1	2.5
KW1-1202AB	KW1-1202CB	Blue	470	30	50	4.5	5

1.50″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-1501A2 KW1-1501C2 Green 570 7 15 2.2 2.6

KW1-1501A3 KW1-1501C3 Orange 630 8 15 2 2.5

KW1-1501A5 KW1-1501C5 Red 700 5 10 2.1 2.5

KW1-1501A6 KW1-1501C6 Yellow 585 5 10 2.1 2.5

KW1-1501AG KW1-1501CG Green 570 7 15 2.2 2.6

KW1-1501AS KW1-1501CS Red 660 7 15 1.85 2.4

KW1-1501AY KW1-1501CY Yellow 585 30 60 2.1 2.5

KW1-1501AB KW1-1501CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-1501A2	KW1-1501C2	Green	570	7	15	2.2	2.6
KW1-1501A3	KW1-1501C3	Orange	630	8	15	2	2.5
KW1-1501A5	KW1-1501C5	Red	700	5	10	2.1	2.5
KW1-1501A6	KW1-1501C6	Yellow	585	5	10	2.1	2.5
KW1-1501AG	KW1-1501CG	Green	570	7	15	2.2	2.6
KW1-1501AS	KW1-1501CS	Red	660	7	15	1.85	2.4
KW1-1501AY	KW1-1501CY	Yellow	585	30	60	2.1	2.5
KW1-1501AB	KW1-1501CB	Blue	470	30	50	4.5	5

1.50″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-1502A2 KW1-1502C2 Green 570 7 15 2.2 2.6

KW1-1502A3 KW1-1502C3 Orange 630 8 15 2 2.5

KW1-1502A5 KW1-1502C5 Red 700 5 10 2.1 2.5

KW1-1502A6 KW1-1502C6 Yellow 585 5 10 2.1 2.5

KW1-1502AG KW1-1502CG Green 570 7 15 2.2 2.6

KW1-1502AS KW1-1502CS Red 660 7 15 1.85 2.4

KW1-1502AY KW1-1502CY Yellow 585 30 60 2.1 2.5

KW1-1502AB KW1-1502CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-1502A2	KW1-1502C2	Green	570	7	15	2.2	2.6
KW1-1502A3	KW1-1502C3	Orange	630	8	15	2	2.5
KW1-1502A5	KW1-1502C5	Red	700	5	10	2.1	2.5
KW1-1502A6	KW1-1502C6	Yellow	585	5	10	2.1	2.5
KW1-1502AG	KW1-1502CG	Green	570	7	15	2.2	2.6
KW1-1502AS	KW1-1502CS	Red	660	7	15	1.85	2.4
KW1-1502AY	KW1-1502CY	Yellow	585	30	60	2.1	2.5
KW1-1502AB	KW1-1502CB	Blue	470	30	50	4.5	5

SINGLE DIGIT DISPLAY (1.80"~4.00")

1.80″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-1801A2 KW1-1801C2 Green 570 7 15 2.2 2.6

KW1-1801A3 KW1-1801C3 Orange 630 8 15 2 2.5

KW1-1801A5 KW1-1801C5 Red 700 5 10 2.1 2.5

KW1-1801A6 KW1-1801C6 Yellow 585 5 10 2.1 2.6

KW1-1801AG KW1-1801CG Green 570 7 15 2.2 2.6

KW1-1801AS KW1-1801CS Red 660 7 15 1.85 2.4

KW1-1801AY KW1-1801CY Yellow 585 30 60 2.1 2.5

KW1-1801AB KW1-1801CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-1801A2	KW1-1801C2	Green	570	7	15	2.2	2.6
KW1-1801A3	KW1-1801C3	Orange	630	8	15	2	2.5
KW1-1801A5	KW1-1801C5	Red	700	5	10	2.1	2.5
KW1-1801A6	KW1-1801C6	Yellow	585	5	10	2.1	2.6
KW1-1801AG	KW1-1801CG	Green	570	7	15	2.2	2.6
KW1-1801AS	KW1-1801CS	Red	660	7	15	1.85	2.4
KW1-1801AY	KW1-1801CY	Yellow	585	30	60	2.1	2.5
KW1-1801AB	KW1-1801CB	Blue	470	30	50	4.5	5

2.30″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-2302A2 KW1-2302C2 Green 570 7 15 2.2 2.6

KW1-2302A3 KW1-2302C3 Orange 630 8 15 2 2.5

KW1-2302A5 KW1-2302C5 Red 700 5 10 2.1 2.5

KW1-2302A6 KW1-2302C6 Yellow 585 5 10 2.1 2.5

KW1-2302AG KW1-2302CG Green 570 7 15 2.2 2.6

KW1-2302AS KW1-2302CS Red 660 7 15 1.85 2.4

KW1-2302AY KW1-2302CY Yellow 585 30 60 2.1 2.5

KW1-2302AB KW1-2302CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-2302A2	KW1-2302C2	Green	570	7	15	2.2	2.6
KW1-2302A3	KW1-2302C3	Orange	630	8	15	2	2.5
KW1-2302A5	KW1-2302C5	Red	700	5	10	2.1	2.5
KW1-2302A6	KW1-2302C6	Yellow	585	5	10	2.1	2.5
KW1-2302AG	KW1-2302CG	Green	570	7	15	2.2	2.6
KW1-2302AS	KW1-2302CS	Red	660	7	15	1.85	2.4
KW1-2302AY	KW1-2302CY	Yellow	585	30	60	2.1	2.5
KW1-2302AB	KW1-2302CB	Blue	470	30	50	4.5	5

3.00″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-3001A2 KW1-3001C2 Green 570 7 15 2.2 2.6

KW1-3001A3 KW1-3001C3 Orange 630 8 15 2 2.5

KW1-3001A5 KW1-3001C5 Red 700 5 10 2.1 2.5

KW1-3001A6 KW1-3001C6 Yellow 585 5 10 2.1 2.5

KW1-3001AG KW1-3001CG Green 570 7 15 2.2 2.6

KW1-3001AS KW1-3001CS Red 660 7 15 1.85 2.4

KW1-3001AY KW1-3001CY Yellow 585 30 60 2.1 2.5

KW1-3001AB KW1-3001CB Blue 470 30 50 4.5 5

Part Number		Chip		If=20mA		If=20mA
				Iv (mcd)		Vf (V)
Common Anode	Common Cathode	Emitting	λP	Min.	Typ.	Min.	Typ.
		Color	(nm)
KW1-3001A2	KW1-3001C2	Green	570	7	15	2.2	2.6
KW1-3001A3	KW1-3001C3	Orange	630	8	15	2	2.5
KW1-3001A5	KW1-3001C5	Red	700	5	10	2.1	2.5
KW1-3001A6	KW1-3001C6	Yellow	585	5	10	2.1	2.5
KW1-3001AG	KW1-3001CG	Green	570	7	15	2.2	2.6
KW1-3001AS	KW1-3001CS	Red	660	7	15	1.85	2.4
KW1-3001AY	KW1-3001CY	Yellow	585	30	60	2.1	2.5
KW1-3001AB	KW1-3001CB	Blue	470	30	50	4.5	5

4.00″
SINGLE DIGIT

Part Number Chip If=20mA If=20mA

Iv (mcd) Vf (V)

Common Anode Common Cathode Emitting λP Min. Typ. Min. Typ.

Color (nm)

KW1-4001A2 KW1-4001C2 Green 570 7 15 2.2 2.6

KW1-4001A3 KW1-4001C3 Orange 630 8 15 2 2.5

KW1-4001A5 KW1-4001C5 Red 700 5 10 2.1 2.5

KW1-4001A6 KW1-4001C6 Yellow 585 5 10 2.1 2.5

KW1-4001AG KW1-4001CG Green 570 7 15 2.2 2.6

KW1-4001AS KW1-4001CS Red 660 7 15 1.85 2.4

KW1-4001AY KW1-4001CY Yellow 585 30 60 2.1 2.5

KW1-4001AB KW1-4001CB Blue 470 30 50 4.5 5
