FOUR DIGITS DISPLAY

QUADRUPLE DIGITS DISPLAY (0.28"~0.36")

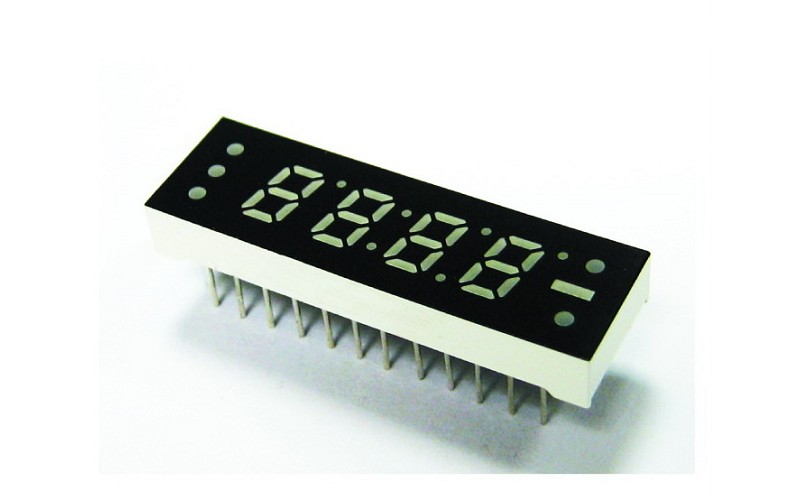

0.28″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-281A2KW4-281C2Green5707152.22.6
KW4-281A3KW4-281C3Orange63081522.5
KW4-281A5KW4-281C5Red7005102.12.5
KW4-281A6KW4-281C6Yellow5855102.12.5
KW4-281AGKW4-281CGGreen5707152.22.6
KW4-281ASKW4-281CSRed6607151.852.4
KW4-281AYKW4-281CYYellow58530602.12.5
KW4-281ABKW4-281CBBlue47030504.55

0.28″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-282A2KW4-282C2Green5707152.22.6
KW4-282A3KW4-282C3Orange63081522.5
KW4-282A5KW4-282C5Red7005102.12.5
KW4-282A6KW4-282C6Yellow5855102.12.5
KW4-282AGKW4-282CGGreen5707152.22.6
KW4-282ASKW4-282CSRed6607151.852.4
KW4-282AYKW4-282CYYellow58530602.12.5
KW4-282ABKW4-282CBBlue47030504.55

0.30″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-301A2KW4-301C2Green5707152.22.6
KW4-301A3KW4-301C3Orange63081522.5
KW4-301A5KW4-301C5Red7005102.12.5
KW4-301A6KW4-301C6Yellow5855102.12.5
KW4-301AGKW4-301CGGreen5707152.22.6
KW4-301ASKW4-301CSRed6607151.852.4
KW4-301AYKW4-301CYYellow58530602.12.5
KW4-301ABKW4-301CBBlue47030504.55

0.36″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-361A2KW4-361C2Green5707152.22.6
KW4-361A3KW4-361C3Orange63081522.5
KW4-361A5KW4-361C5Red7005102.12.5
KW4-361A6KW4-361C6Yellow5855102.12.5
KW4-361AGKW4-361CGGreen5707152.22.6
KW4-361ASKW4-361CSRed6607151.852.4
KW4-361AYKW4-361CYYellow58530602.12.5
KW4-361ABKW4-361CBBlue47030504.55

QUADRUPLE DIGITS DISPLAY (0.39"~0.52")

0.39″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-392A2KW4-392C2Green5707152.22.6
KW4-392A3KW4-392C3Orange63081522.5
KW4-392A5KW4-392C5Red7005102.12.5
KW4-392A6KW4-392C6Yellow5855102.12.5
KW4-392AGKW4-392CGGreen5707152.22.6
KW4-392ASKW4-392CSRed6607151.852.4
KW4-392AYKW4-392CYYellow58530602.12.5
KW4-392ABKW4-392CBBlue47030504.55

0.39″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-394A2KW4-394C2Green5707152.22.6
KW4-394A3KW4-394C3Orange63081522.5
KW4-394A5KW4-394C5Red7005102.12.5
KW4-394A6KW4-394C6Yellow5855102.12.5
KW4-394AGKW4-394CGGreen5707152.22.6
KW4-394ASKW4-394CSRed6607151.852.4
KW4-394AYKW4-394CYYellow58530602.12.5
KW4-394ABKW4-394CBBlue47030504.55

0.40″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-401A2KW4-401C2Green5707152.22.6
KW4-401A3KW4-401C3Orange63081522.5
KW4-401A5KW4-401C5Red7005102.12.5
KW4-401A6KW4-401C6Yellow5855102.12.5
KW4-401AGKW4-401CGGreen5707152.22.6
KW4-401ASKW4-401CSRed6607151.852.4
KW4-401AYKW4-401CYYellow58530602.12.5
KW4-401ABKW4-401CBBlue47030504.55

0.52″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-521A2KW4-521C2Green5707152.22.6
KW4-521A3KW4-521C3Orange63081522.5
KW4-521A5KW4-521C5Red7005102.12.5
KW4-521A6KW4-521C6Yellow5855102.12.5
KW4-521AGKW4-521CGGreen5707152.22.6
KW4-521ASKW4-521CSRed6607151.852.4
KW4-521AYKW4-521CYYellow58530602.12.5
KW4-521ABKW4-521CBBlue47030504.55

QUADRUPLE DIGITS DISPLAY (0.56")

0.56″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-561A2KW4-561C2Green5707152.22.6
KW4-561A3KW4-561C3Orange63081522.5
KW4-561A5KW4-561C5Red7005102.12.5
KW4-561A6KW4-561C6Yellow5855102.12.5
KW4-561AGKW4-561CGGreen5707152.22.6
KW4-561ASKW4-561CSRed6607151.852.4
KW4-561AYKW4-561CYYellow58530602.12.5
KW4-561ABKW4-561CBBlue47030504.55

0.56″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-562A2KW4-562C2Green5707152.22.6
KW4-562A3KW4-562C3Orange63081522.5
KW4-562A5KW4-562C5Red7005102.12.5
KW4-562A6KW4-562C6Yellow5855102.12.6
KW4-562AGKW4-562CGGreen5707152.22.6
KW4-562ASKW4-562CSRed6607151.852.4
KW4-562AYKW4-562CYYellow58530602.12.5
KW4-562ABKW4-562CBBlue47030504.55

0.56″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-563A2KW4-563C2Green5707152.22.6
KW4-563A3KW4-563C3Orange63081522.5
KW4-563A5KW4-563C5Red7005102.12.5
KW4-563A6KW4-563C6Yellow5855102.12.5
KW4-563AGKW4-563CGGreen5707152.22.6
KW4-563ASKW4-563CSRed6607151.852.4
KW4-563AYKW4-563CYYellow58530602.12.5
KW4-563ABKW4-563CBBlue47030504.55

0.56″
QUADRUPLE DIGITS

Part Number Chip If=20mA If=20mA
Iv (mcd)Vf (V)
Common AnodeCommon CathodeEmittingλPMin.Typ.Min.Typ.
Color(nm)
KW4-566A2KW4-566C2Green5707152.22.6
KW4-566A3KW4-566C3Orange63081522.5
KW4-566A5KW4-566C5Red7005102.12.5
KW4-566A6KW4-566C6Yellow5855102.12.6
KW4-566AGKW4-566CGGreen5707152.22.6
KW4-566ASKW4-566CSRed6607151.852.4
KW4-566AYKW4-566CYYellow58530602.12.5
KW4-566ABKW4-566CBBlue47030504.55
