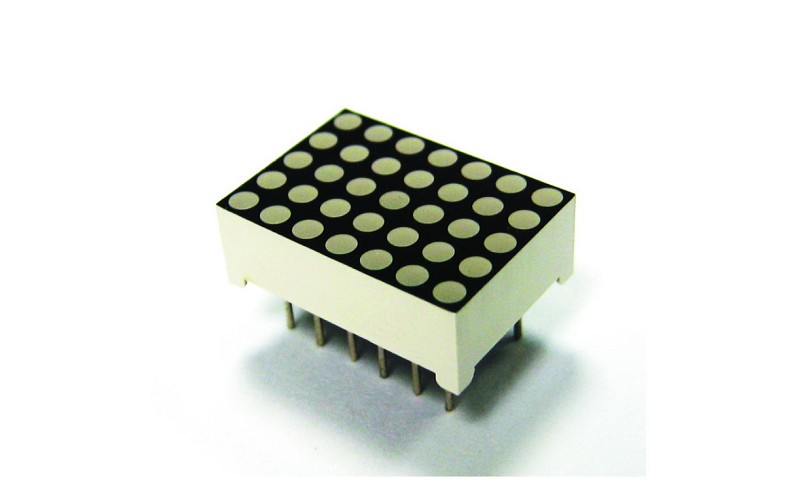

DOT MATRIX DISPLAY

KWM-19571X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-19571A5 KWM-19571C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-19571A3 KWM-19571C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-19571AG KWM-19571CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-19571AY KWM-19571CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-19571AS KWM-19571CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-19571AB KWM-19571CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-19571A5	KWM-19571C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-19571A3	KWM-19571C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-19571AG	KWM-19571CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-19571AY	KWM-19571CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-19571AS	KWM-19571CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-19571AB	KWM-19571CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-19881X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-19881A5 KWM-19881C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-19881A3 KWM-19881C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-19881AG KWM-19881CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-19881AY KWM-19881CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-19881AS KWM-19881CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-19881AB KWM-19881CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-19881A5	KWM-19881C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-19881A3	KWM-19881C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-19881AG	KWM-19881CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-19881AY	KWM-19881CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-19881AS	KWM-19881CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-19881AB	KWM-19881CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-30571X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-30571A5 KWM-30571C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-30571A3 KWM-30571C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-30571AG KWM-30571CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-30571AY KWM-30571CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-30571AS KWM-30571CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-30571AB KWM-30571CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-30571A5	KWM-30571C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-30571A3	KWM-30571C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-30571AG	KWM-30571CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-30571AY	KWM-30571CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-30571AS	KWM-30571CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-30571AB	KWM-30571CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-30881X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-30881A5 KWM-30881C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-30881A3 KWM-30881C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-30881AG KWM-30881CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-30881AY KWM-30881CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-30881AS KWM-30881CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-30881AB KWM-30881CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-30881A5	KWM-30881C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-30881A3	KWM-30881C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-30881AG	KWM-30881CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-30881AY	KWM-30881CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-30881AS	KWM-30881CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-30881AB	KWM-30881CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-30572X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-30572A5 KWM-30572C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-30572A3 KWM-30572C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-30572AG KWM-30572CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-30572AY KWM-30572CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-30572AS KWM-30572CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-30572AB KWM-30572CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-30572A5	KWM-30572C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-30572A3	KWM-30572C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-30572AG	KWM-30572CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-30572AY	KWM-30572CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-30572AS	KWM-30572CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-30572AB	KWM-30572CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-50571X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-50571A5 KWM-50571C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-50571A3 KWM-50571C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-50571AG KWM-50571CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-50571AY KWM-50571CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-50571AS KWM-50571CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-50571AB KWM-50571CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-50571A5	KWM-50571C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-50571A3	KWM-50571C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-50571AG	KWM-50571CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-50571AY	KWM-50571CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-50571AS	KWM-50571CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-50571AB	KWM-50571CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-37881X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-37881A5 KWM-37881C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-37881A3 KWM-37881C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-37881AG KWM-37881CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-37881AY KWM-37881CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-37881AS KWM-37881CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-37881AB KWM-37881CB Blue 470 30 100 20 160 3.5 4.2 12000

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting Color	Peak W.L λP (nm)	λP (nm)	Pd (nm)	If(mm)	If peak	Vf (V)		Iv
										(ucd)
								Typ.	Max.	Typ.
KWM-37881A5	KWM-37881C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWM-37881A3	KWM-37881C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWM-37881AG	KWM-37881CG	Green	568	30	100	30	160	2.2	2.8	1600
KWM-37881AY	KWM-37881CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWM-37881AS	KWM-37881CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWM-37881AB	KWM-37881CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWM-50882X

Part Number Chip Absolute Maximum Ratings Electro-optical Data

(At 10mA)

Common Anode Common Cathode Emitting Color Peak W.L λP (nm) λP (nm) Pd (nm) If(mm) If peak Vf (V) Iv

(ucd)

Typ. Max. Typ.

KWM-50882A5 KWM-50882C5 Bright Red 700 90 45 15 50 2.2 2.8 550

KWM-50882A3 KWM-50882C3 Hi.effi Red 635 45 100 30 160 2.1 2.8 1800

KWM-50882AG KWM-50882CG Green 568 30 100 30 160 2.2 2.8 1600

KWM-50882AY KWM-50882CY Yellow 585 30 100 30 160 2.1 2.8 1500

KWM-50882AS KWM-50882CS SuperRed 660 20 60 20 160 1.8 2.4 5000

KWM-50882AB KWM-50882CB Blue 470 30 100 20 160 3.5 4.2 12000
